Silvertip II SD - Compact Camera with Lights
Key features
The Silvertip II SD - Compact Camera with Lights is a small subsea tooling & inspection camera with integrated LED lights.

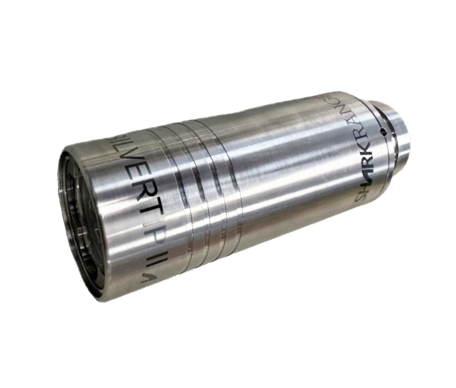

Silvertip II SD
A Compact SD Camera with Lights
Introduction
The Silvertip II standard definition, mini colour light ring cameras have been designed primarily for use in subsea environments and are ideally suited to close proximity inspection tasks such as gauge monitoring, ROV manipulator wrist applications and tooling operations.
The Silvertip II is fitted within an extremely compact and rugged 6000msw depth rated Titanium housing. The camera provides a standard definition composite video signal output via the 5507-1508 connector or customer specified external connector.
Please send your enquiry to:
UK and Global: [email protected]
Norway and Europe: [email protected]
US enquiries contact: [email protected]
Product sheet - Silvertip II SDSpecifications
| Resolution | 800 TVL | |
| Light Sensitivity | 0.2 Lux | |
| Led Light Output | 600 Lumens (Max) | |
| Scan Standards | 625 lines 50 Hz PAL 525 lines 60 HZ NTSC |
|
| Video Output | 1V pk-pk composite video into 75Ω | |
| Power Input | 24 VDC, (12-36) 8w | |
| Light Output Control | Bi-Polar or Tristate | |
| White Balance | Factory pre-set to 5,000K | |
| Front Port | Acrylic | |
| AOV in Water | Diagonal: 73° Horizontal: 61° |
|
| Focus Range | 300mm to infinity, fixed | |
| Dimensions | Diameter: 50mm (main body) Length: 118mm (excl. connector) |
|
| Weight | In water: 0.4 Kg In air: 0.5 Kg |
|
| Housing Material | Titanium | |
| Connector | Burton/Seacon 5507-1508, Seanet or customer specified | |
| Operating Depth | 6000 msw | |
| Temperature | Operating: -5 to 40°C Storage: -20 to 60°C | |
| Shock | 30G peak acceleration, 25ms half sine duration, on all three axes | |
| Vibration | 10G, from 20 to 150HZ on all three axes | |
| Electromagnetic Compatibility | BS EN 61000-6-3: 2001 Emission and BS EN 61000-6-1: 2001 Immunity |
