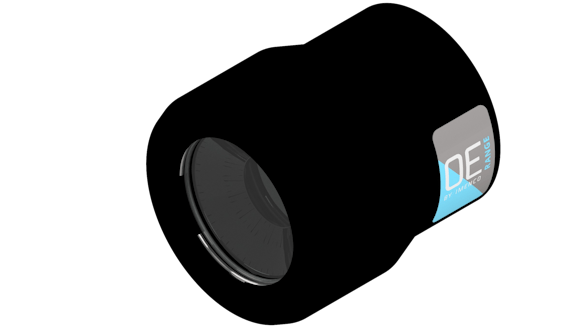

OE11-153 - SeaLED 153 - 1,700 Lumen LED light
Key features
The SeaLED 153 is a compact and rugged underwater LED lamp, designed specifically for diver and ROV deployment applications
OE11-153 – SeaLED 153 – 1,700 Lumen LED light
The perfect tool for the demanding requirements of underwater video tasks where accurate colour replication is essential
Introduction
The SeaLED 153 is a compact and rugged underwater LED lamp, designed specifically for diver and ROV deployment applications.
The lamp is fitted with a high-density LED array, producing a broad and even beam of warm white light with a luminous output of 1700 lumens and a minimum measured illumination
of 1026 Lux at 1 metre. The SeaLED153 is the perfect tool for the demanding requirements of underwater video tasks where accurate colour replication is essential.
The SeaLED 153 Led lamp is a basic, no frills plug & play unit and has a wide (67°) beam angle. The SeaLED153 utilizes a robust 3000msw anodized aluminium alloy housing.
Please send your enquiry to:
UK and Global: [email protected]
Norway and Europe: [email protected]
US enquiries contact: [email protected]
Product Sheet - OE11-153Specifications
| Lighting | LED Lamp |
| Total Luminous Output | 1,700 Lumens (typical) |
| Illuminance @ 1 metre | 1026 Lux |
| Beam Angle | 67° in water, 95° in air |
| Colour Temperature | 5000K (various colour temperatures available on request) |
| LED Life | >50,000 hours if adequately cooled |
| Power Input | 18 to 30 VDC, (24 VDC – 24.5W, 1.02A) |
| Inrush Current | 1.4A |
| Dimensions | Diameter: 55mm Front body, 48mm rear body Length: 58.3mm (excl. connector) |
| Weight (in air) | 0.30kg |
| Weight (in water) | 0.16kg |
| Shipping Weight | 0.50kg |
| Housing Material | HE30T6 marine grade Aluminum |
| Connector Type | Subconn MCBH3M connector (Optional connectors: - LPBH3M, BH4M XSG-3-BCL-HP) |
| Operating Depth | 3,000msw |
