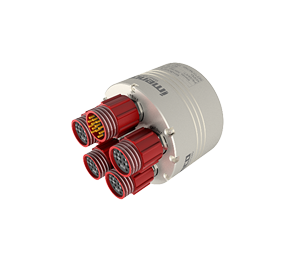

IM21-100
Interface solution allowing up to 4 Subsea Ethernet devices to be connected to the 5 port Hub.
IM21-100
Introduction
The IM21-100 provides an interface solution allowing up to 4 Subsea Ethernet devices to be connected to the 5 port Hub.
The IM21-100 utilises an extremely rugged titanium alloy housing depth rated for 6000msw operation.
This. solution is ideal for those who require high quality video requirements whilst having access to only one Ethernet connection.
Applications
- ROV & Manned Submersible
- General Purpose
- Inspection & Survey
- Multiplexer Extender
- Tow & Drop Camera System
Specifications
| Input Power | 16V - 24V DC |
| Data | 10/100/1000Base T Ethernet |
| Max Cable Length | 90 meters |
| Standard connector | Subconn DBH13M x1 & Subconn DBH13F X 4 |
| Connector Position | Mounted on housing end plate. |
| Diameter | 112mm |
| Length | 88mm (not including connectors 44mm) |
| Weight | 2.85 kg in Air, 2.15 kg in water (est) |
| Housing Material | Titanium 6AL/4B |
| Packed Weight | 3.5 kg |
| Packed Dimensions | 300 x 180 x 170 mm |
| Temperature | Operating: -5°C to +40°C Storage -20°C to +60°C |
| Pressure rating | 6000 msw |
| Shock | Designed to withstand 30G, 25ms half sine duration, on all three axes |
| Vibration | Designed to withstand 10G, from 20 to 150HZ on all three axes |
| Electro-Magnetic Compatibility | BS EN 61000-6-3: 2007 Emission Standard BS EN 61000-6-1: 2007 Immunity Standard |
