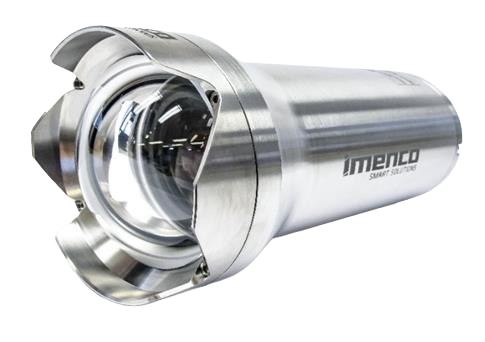

IM14-506 High Definition Wide Angle Colour Zoom Camera
The IM14-506 high definition, colour zoom camera has a custom engineered and water corrected optical arrangement
IM14-506
Introduction
The IM14-506 high definition colour zoom camera has been designed primarily for use in subsea environments and is ideally suited to HD inspection & survey tasks, marine science and (HOV) manned submersible deployment and vessel hull mount (research vessel & mega yacht) applications.
The IM14-506 high definition, colour zoom camera has a custom engineered and water corrected optical arrangement, with a 30:1 optical zoom lens, the video image remains in focus from the front port to infinity, making it the perfect choice for both close up and stand-off inspections.
Packaged within a robust 4500msw depth rated titanium alloy housing with a 6000msw option, the IM14-506 provides a high definition video output signal which is available in a range of customer specified transmission modes including HD-SDI over coax and HD-SDI over fibre with other options available on request.
The IM14-506 can also be customized with a variety of external connectors. Camera functions can be operated via a single wire (tri- state) voltage control system or by using Imenco’s proprietary command protocol and GUI (Graphical User Interface) over an RS485 or RS232 serial link.The IM14-506 is supplied with a handheld infra-red remote control and GUI both are included free of charge and have been intuitively designed for ease of use. An optional flange mount housing assembly is also available for integration into research vessels and mega yachts hulls.
Applications
- Marine Science
- Manned Submersibles
- HD Inspection and Survey
- Pipeline & Jacket Inspection
Please send your enquiry to:
UK and Global: [email protected]
Norway and Europe: [email protected]
IM14-506 Datasheet| Performance | |
| Horizontal Resolution | 800 TVL/PH |
| Light Sensitivity | 100mV video at 0.01 lux faceplate, 350mV video at 0.02 lux faceplate |
| Minimum Scene Illumination | 0.13 lux |
| Nominal Signal to Noise Ratio | >50dB (weighted) |
| Electrical | |
| Scan Standards | 1080p / 720p, 50 fps Factory default 1080p / 720p, 60 fps 1080p / 720p, 30 fps 1080p / 720p, 25 fps Additional options available |
| Sensor Elements | 1920 (H) x 1080 (V) |
| Video Output | HD-SDI over Coax, HD-SDI over fibre (SM, MM, CWDM) |
| Power Input | 16 – 30 VDC, 700mA (max) |
| Control | Single wire (tri-state), RS232, RS485 (user selectable via IR remote) |
| Optical | |
| Lens | 4.3mm to 129mm, F1.6 to F4.7 30:1 optical zoom |
| AOV in water | Horizontal: 72° (Wide) Vertical: 40° (Wide) Diagonal: 80° (Wide) |
| Iris Control | Automatic (manual control available through GUI) |
| Focus Range | Front port to infinity (at wide angle) 800mm to infinity (at tele angle) |
| Mechanical | |
| Dimensions | Diameter main Body:105mm, (118mm front end hood) Length: 220mm (excl. connector) |
| Weight | In air: 3.8 Kg, In water: 2 Kg |
| Housing Material | Titanium alloy 6AL/4V ASTM B3 48 |
| Connector | Configuration dependent |
| Environmental | |
| Operating Depth | 4500msw or 6,000msw option (Other options on request) |
| Temperature | Operating: -5 to 40°C, Storage: -20 to 60°C |
| Shock | 30G peak acceleration, 25ms half sine duration, on all three axes |
| Vibration | 10G, from 20 to 150HZ on all three axes |
| Electromagnetic Compatibility | BS EN 61000-6-3: 2007 Emission and BS EN 61000-6-1: 2007 Immunity |
