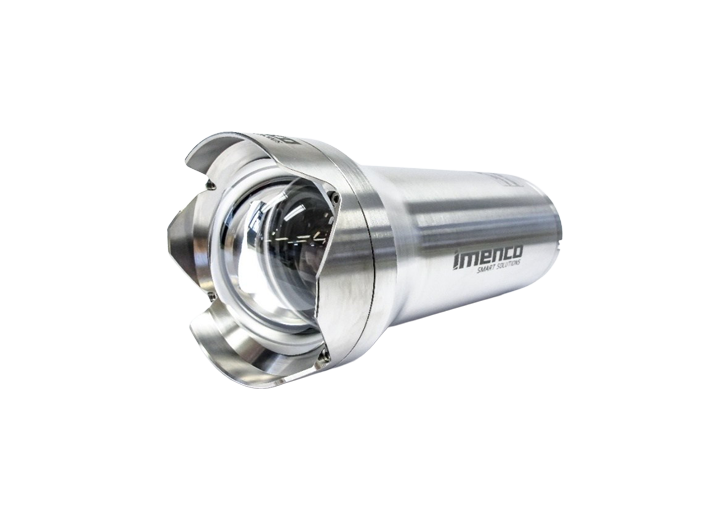

IM14-390 & IM14-391 Wide Angle Colour Zoom Camera
IM14-390 & IM14-391 Wide Angle Colour Zoom Camera
IM14-390 & IM14-391 Colour Zoom Camera uses the latest CCD technology to give improved image definition.
IM14-390 & IM14-391
A Wide Angle Colour Zoom Camera standing out as the industry standard ROV inspection wide angle colour zoom camera
Introduction
The IM14-390 (PAL) and IM14-391 (NTSC) standard definition, wide angle colour zoom cameras have been designed primarily for use in subsea environments and are ideally suited to inspection & survey applications, general observation, construction, and drill support tasks.
The IM14-390/391 standard definition, wide angle colour zoom camera has a unique optical arrangement providing an extremely wide (84° diagonal) angle of view. The video image is focused from as close as the front port to infinity (equipped with a 10:1 optical zoom lens), making the IM14-390/391 an excellent tool for both close up and stand-off inspections.
Packaged within a robust 4500msw (6000msw also available) depth rated titanium alloy housing, the IM14-390/391 provides a standard definition composite video signal output via the Burton 5506-1508 connector or customer specified external connector.
Camera functions can be operated via a single wire (tri- state) voltage system or by using Imenco’ s proprietary command protocol and GUI (Graphical User Interface) over an RS485 or RS232 serial link.
The IM14-390/391 is supplied with a handheld infra-red remote control and GUI both are included free of charge and have been intuitively designed for ease of use.
Applications
- IMR Tasks
- Drill Support
- Inspection and Survey
- General Observation Tasks
Please send your enquiry to:
UK and Global: [email protected]
Norway and Europe: [email protected]
IM14-390 & IM14-391 Datasheet
Specifications
| Performance | |
| Horizontal Resolution | 550 TVL/PH |
| Light Sensitivity | 100mV video at 0.003 lux (max) faceplate |
| Minimum Scene Illumination | 0.049 lux(nominal) for100Mv Video at 100% scene illumination |
| Nominal Signal to Noise Ratio | >48dB (weighted) |
| Electrical | |
| Scan Standards | 625 lines 50 Hz PAL (IM14-390) 525 lines 60 HZ NTSC (IM14-391) |
| Sensor Elements | 752 (H) x 582 (V) (IM14-390) 768 (H) x 494 (V) (IM14-391) |
| Video Output | 1V pk-pk composite video into 75Ω |
| Power Input | 16 – 24 VDC, 500mA (max) |
| Control | Single wire (tri-state), two wire (bi-polar), RS232, RS485 |
| Optical | |
| Lens | 3.3mm to 33mm, 10:1 optical zoom, F1.8 to F3.4 |
| AOV in water | Horizontal: 70° (Wide)
Vertical: 54° (Wide) Diagonal: 84° (Wide) |
| Iris Control | Automatic (manual control available through GUI) |
| Focus Range | Front port to infinity (at wide angle) 150mm to infinity (at narrow angle) |
| Mechanical | |
| Dimensions | 4500 msw: Diameter main Body:88mm, (109.5MM front end hood) Length:179.1.1mm(excl.conn)
6000 msw: Diameter main Body:92.2mm, Length:221mm (excl conn) |
| Weight | 4500msw in air: 2.45Kg, In water: 1.45 Kg 6000msw in air: 3.58 Kg, In water: 2.0 Kg |
| Housing Material | Titanium alloy 6AL/4V ASTM B3 48 |
| Connector | Burton 5506-1508 or customer specified |
| Environmental | |
| Operating Depth | 4500 msw (6000 msw also available) |
| Temperature | Operating: -5 to 40°C Storage: -20 to 60°C |
| Shock | 30G peak acceleration, 25ms half sine duration, on all three axes |
| Vibration | 10G, from 20 to 150HZ on all three axes |
| Electromagnetic Compatibility | BS EN 61000-6-3: 2007 Emission and BS EN 61000-6-1: 2007 Immunity |
