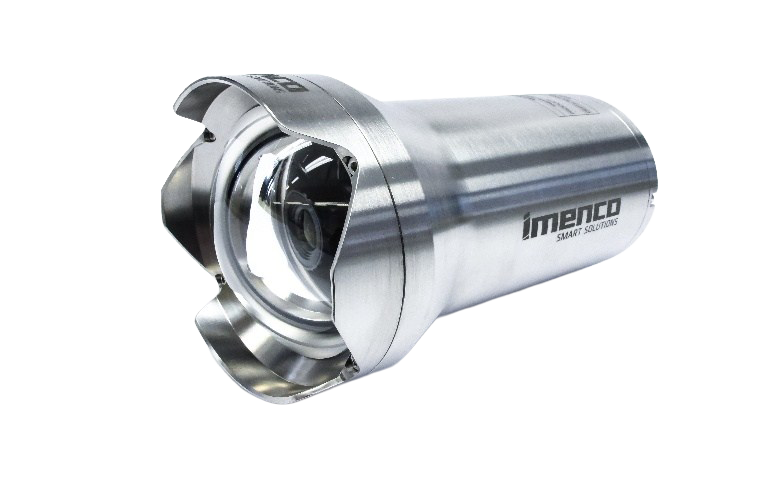

IM13-136 & IM13-137 HD IP extreme low light, monochrome camera has been designed primarily for use in subsea environments and is ideally suited to low light surveillance
IM13-136 & IM13-137 HD IP
Extreme Low Light Monochrome Underwater CCD Camera
Introduction
The IM13-136HD IP (25HZ) and IM13-137HD IP (30HZ) extreme low light, monochrome camera has been designed primarily for use in subsea environments and are ideally suited to low light surveillance including mid-water and long-range navigation tasks, general observation and situational awareness applications.
The IM13-136/137 HD IP camera offers both exceptional low light sensitivity and a wide AOV (95° diagonal) in water. The IM13-136/137 HD IP Incorporates advanced imaging processing technology, delivering a significantly improved low light performance over conventional low light SIT, CCD and CMOS sensors in all subsea environments.
The video image will appear in focus from an estimated 610mm in front of the port to infinity, making the IM13-136/137 HD IP an excellent choice for both navigation and general observation applications.
Packaged within a robust 4500msw depth rated titanium alloy housing the IM13-136/137 HD IP provides a high-definition video output via the DBH13MTI connector or customer specified external connector.
IM13-136 HD IP Date SheetSpecifications
| Horizontal Resolution | 800 TVL/PH |
| Sensitivity | IR filter fitted 76 microlux faceplate (300TVL limit) |
| Minimum Scene illumination | IR filter fitted 1335 microlux faceplate (300TVL limit) |
| Boot up time | < 25 seconds |
| Signal to noise Ratio | 50db (weighted) |
| Electrical | |
| Scan Standard | IM13-136IP:1632 X 1248p,25HZ 1280 X 720p, 25HZ 816 (H) X 624 (V) Active pixelsIM13-137IP:1632 X 1248p,30HZ 1280 X 720p, 30HZ 816 (H) X 624 (V) Active pixels |
| Power Input | 16 – 24 VDC, 700mA (max) (900mA Inrush) |
| Optical | |
| Lens | 5mm F2.0 |
| AOV in water | Diagonal: 95° Horizontal :70.5° Vertical: 52.5° |
| Iris Control | None (Electronic shutter) |
| Focus Range | Fixed Focus 610mm to infinity (in water) |
| Mechanical | |
| Dimensions | Diameter: 88mm (main body)110mm at front end Length: 164mm (excl. connector) |
| Weight | In air: 2.56 Kg In water: 1.79 Kg |
| Housing Material | Titanium alloy 6AL/4V ASTM B3 48 |
| Interface | |
| Connector | DBH13MTI or customer specified |
| Interface Method | 10/100Mbps Ethernet |
| Video compression | H.264 |
| Streaming Protocols | RTSP, MPEG-TS |
| Video Framerate | 25-30fps |
| Bit rate | 100Kbs-10MBS (Default 8Mbps) |
| Latency | 250ms (Glass to Glass) Nominal |
| Network Protocols | IPv4, TCP, UDP, IGMP, (MULTICAST) HTTP, RTSP & DNS |
| Environmental | |
| Operating Depth | 4500 msw (other depth rated housing options available) |
| Temperature | Operating: -5 to 40°C Storage: -20 to 60°C |
| Shock | 30G peak acceleration, 25ms half sine duration, on all three axes |
| Vibration | 10G, from 20 to 150HZ on all three axes |
| Electromagnetic Compatibility | BS EN 61000-6-3: 2001 Emission BS EN 61000-6-1: 2001 Immunity |
